Key Clamp 116 Three Way Corner Joiner
Keyclamp 116 3 Way Corner
Description

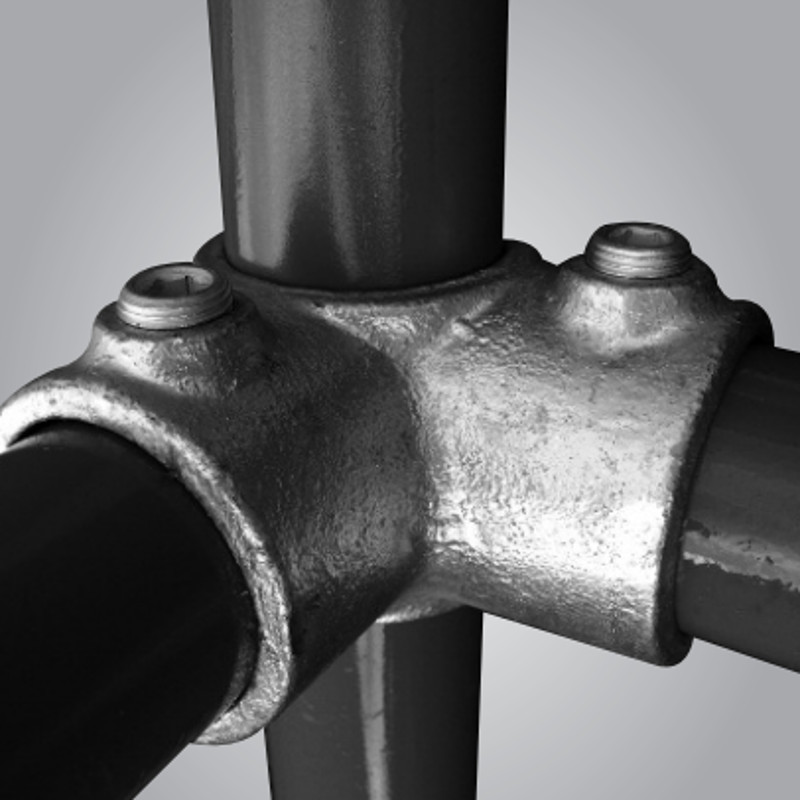

This Key Clamp three way corner is a 90 Degree corner joiner with the vertical tube passing through the Key Clamp.
Used to connect the mid or lower rail to the vertical rail at a 90 Degree corner.
Uses Include
- Handrails
- Support Rails
- Barriers

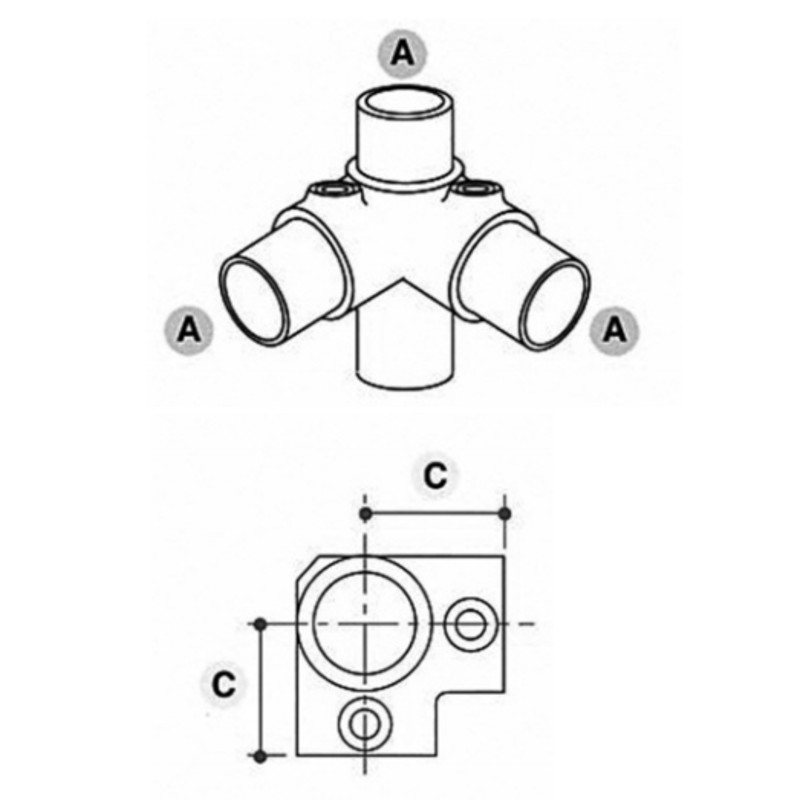

116 Sizes and Attributes
Code | A | B | C | D | E | F | G | Inner Dia mm | Outer Dia mm | Weight Kg |
| 116B | 1″ | 48 | 25 | 33.9 | 0.40 | |||||
| 116C | 1 1/4″ | 60 | 30 | 42.4 | 0.61 | |||||
| 116C | 1 1/2″ | 68 | 40 | 48.3 | 0.72 | |||||
| 116E | 2″ | 86 | 50 | 60.3 | 1.15 |
