Keyclamp 125 Two Way Elbow
Key Clamp 90 Degree 2 Way Elbow
Description

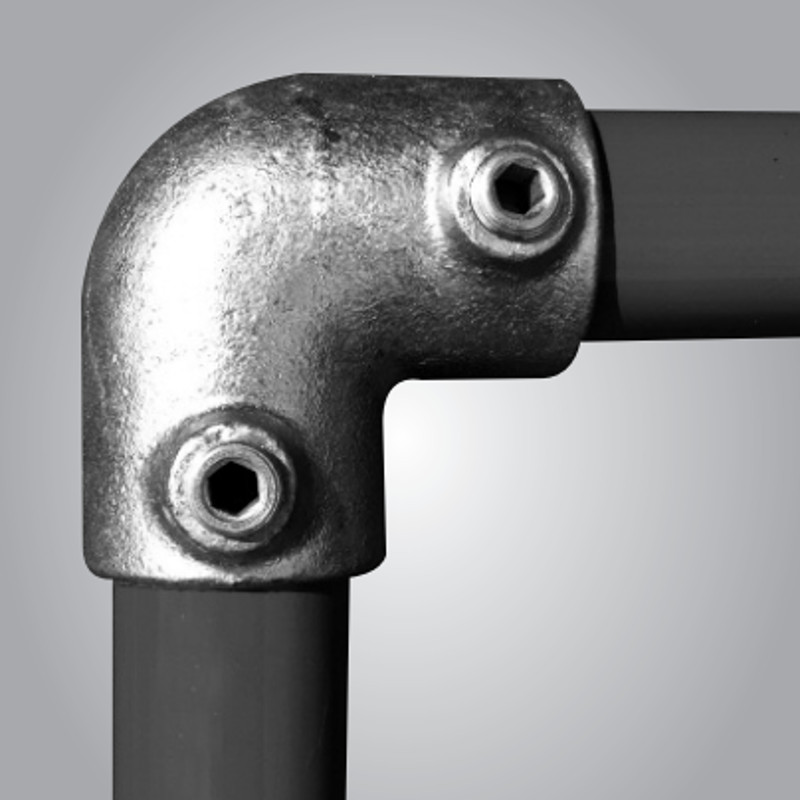

This Key Clamp creates a 90 Degree joint between a vertical and one horizontal rail.
Used on straight and level guardrail to connect one rail to the upright.
Uses Include
125 Sizes and Attributes

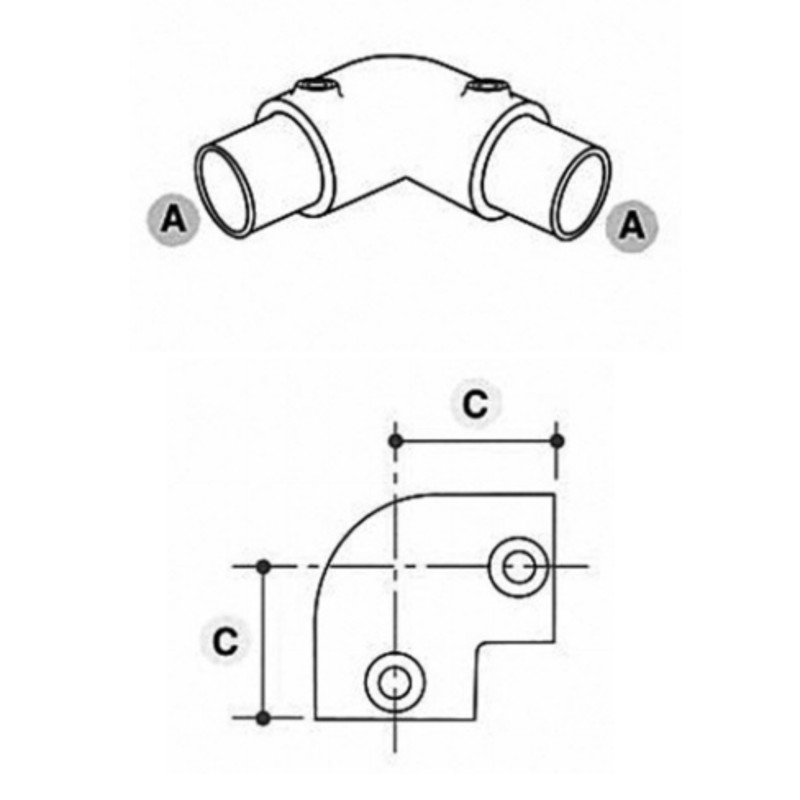

Code | A | B | C | D | E | F | G | Inner Dia mm | Outer Dia mm | Weight Kg |
| 125A | 3/4″ | 41 | 20 | 26.9 | 0.24 | |||||
| 125B | 1″ | 46 | 25 | 33.9 | 0.36 | |||||
| 125C | 1 1/4″ | 60 | 30 | 42.4 | 0.59 | |||||
| 125D | 1 1/2″ | 68 | 40 | 48.3 | 0.69 | |||||
| 125E | 2″ | 84 | 50 | 60.3 | 1.12 |
