Key Clamp 138 Gate Eye
Key Clamp 138 Gate Eye
Description

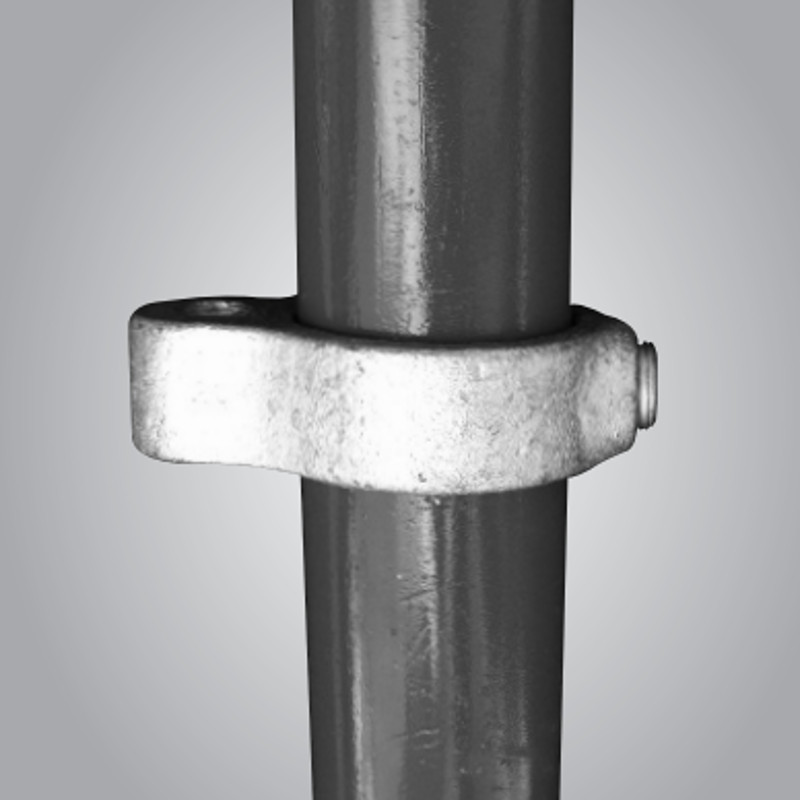

This Key Clamp creates the female piece of a two part gate hinge.
Used with Key Clamp 140 to create gate hinge.
Gate pin hole diameter 14mm
Uses Include
128 Sizes and Attributes

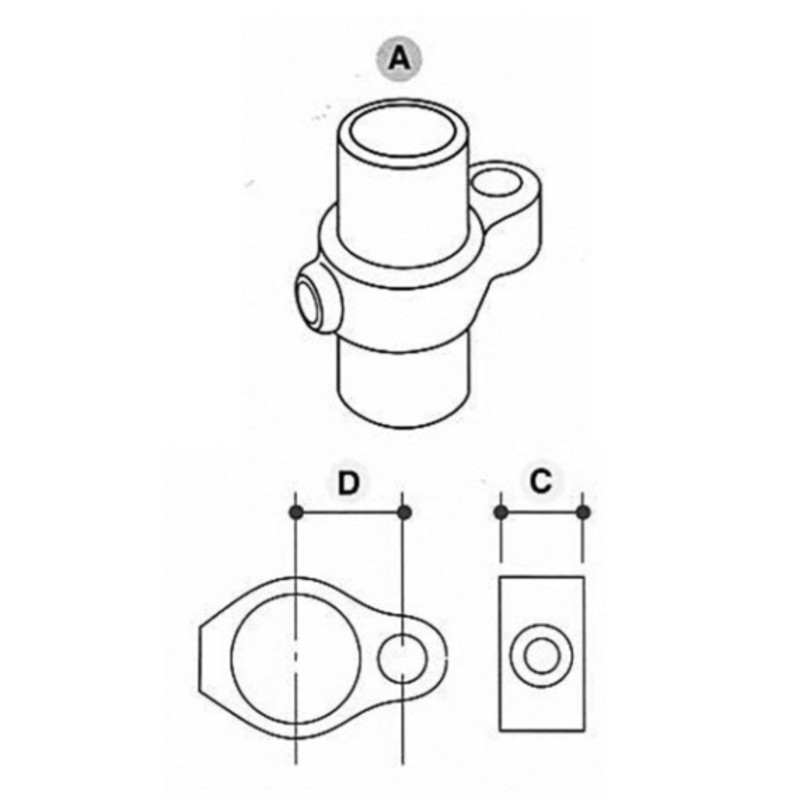

Code | A | B | C | D | E | F | G | Inner Dia mm | Outer Dia mm | Weight Kg |
| 138B | 1″ | 25 | 33 | 25 | 33.9 | 0.18 | ||||
| 138C | 1 1/4″ | 25 | 38 | 30 | 42.4 | 0.21 | ||||
| 138D | 1 1/2″ | 25 | 41 | 40 | 48.3 | 0.22 |
