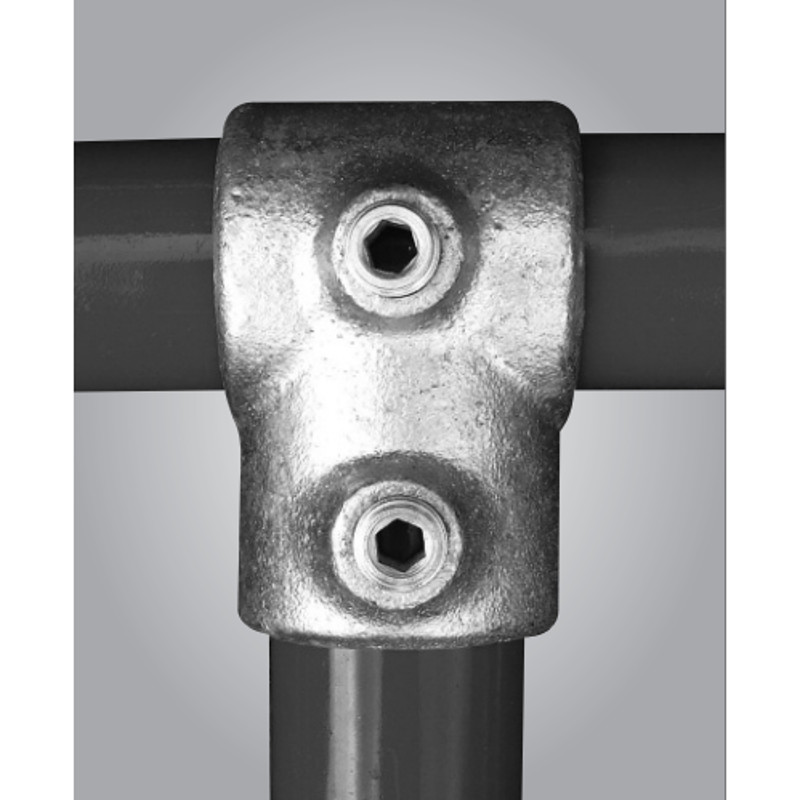

Keyclamp 101 Short Tee
Keyclamp 101 Short Tee
Description
This Key Clamp creates a 90 Degree joint between two horizontal rails.
Used on straight and level guardrail to connect rails to the upright therefore the vertical fitting must remain in line with cross rails.
In addition it is used with the 104 Long Tee.
Uses Include
- Handrails
- Support Rails
- Barriers
119B Sizes and Attributes

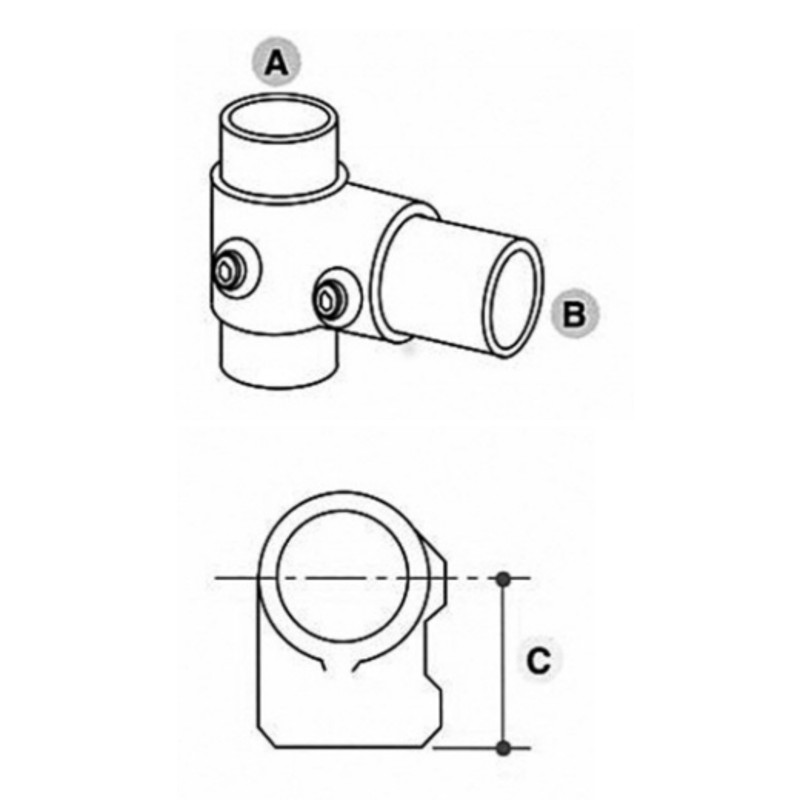

Code | A | B | C | D | E | F | G | Inner Dia mm | Outer Dia mm | Weight Kg |
| 101B | 1″ | 1″ | 41 | 25 | 33.9 | 0.30 | ||||
| 101C | 1 1/4″ | 1 1/4″ | 120 | 30 | 42.4 | 0.46 | ||||
| 101D | 1 1/2″ | 1 1/2″ | 135 | 40 | 48.3 | 0.53 | ||||
| 101E | 2″ | 2″ | 168 | 50 | 60.3 | 0.85 |
