Key Clamp 104 Long Tee
Keyclamp 104 Long Tee
Description

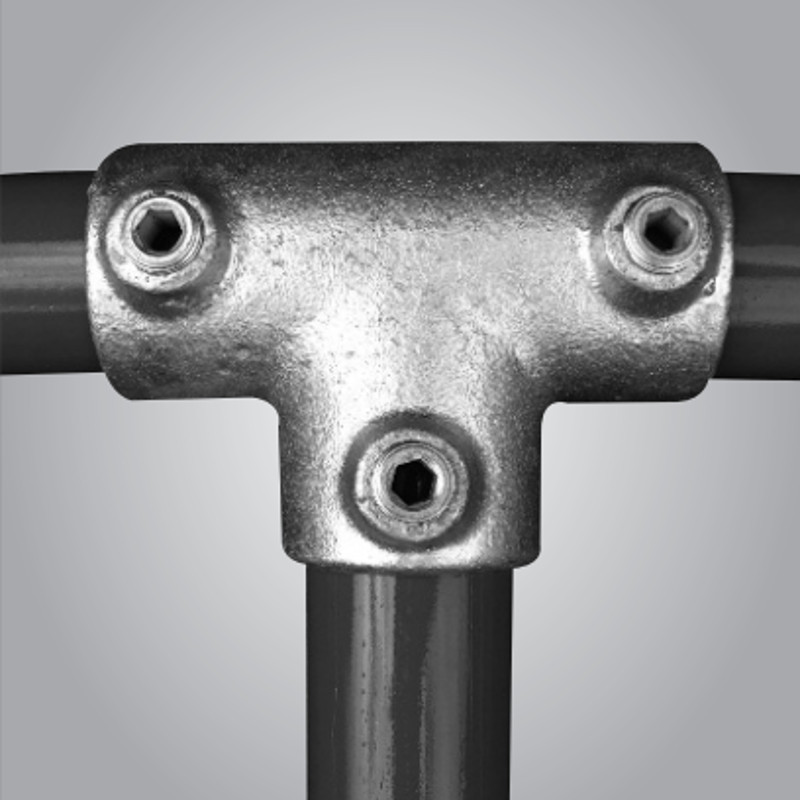

This Key Clamp creates a 90 Degree joint between a vertical and two horizontal rails.
Used on straight and level guardrail to connect rails to the upright therefore the vertical fitting must remain in line with cross rails.
Uses Include
104 Sizes and Attributes
Code | A | B | C | D | E | F | G | Inner Dia mm | Outer Dia mm | Weight Kg |
| 104A | 3/4″ | 82 | 41 | 20 | 26.9 | 0.32 | ||||
| 104B | 1″ | 92 | 46 | 25 | 33.9 | 0.49 | ||||
| 104C | 1 1/4″ | 120 | 60 | 30 | 42.4 | 0.79 | ||||
| 104D | 1 1/2″ | 136 | 68 | 40 | 48.3 | 0.93 | ||||
| 104E | 2″ | 168 | 84 | 50 | 60.3 | 1.50 |
