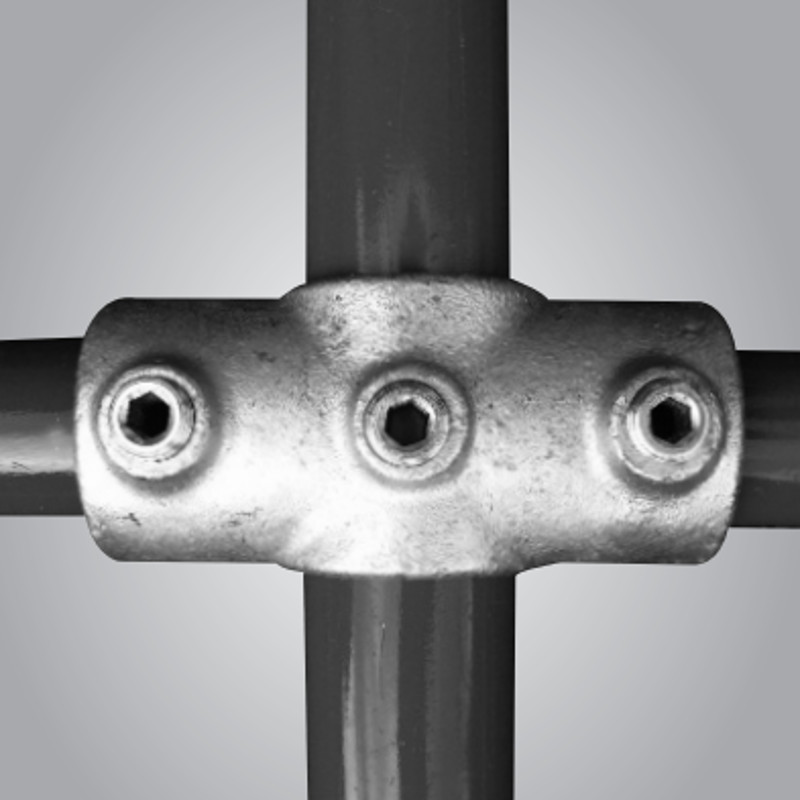

Keyclamp 119B Two Socket Cross
Keyclamp 119B 2 Socket Cross
Description
This Key Clamp creates a 90 Degree joint between a vertical and two horizontal rails.
Used on straight and level guardrail to connect rails to the upright therefore the vertical fitting must remain in line with cross rails.
In addition it is used with the 104 Long Tee.
Uses Include

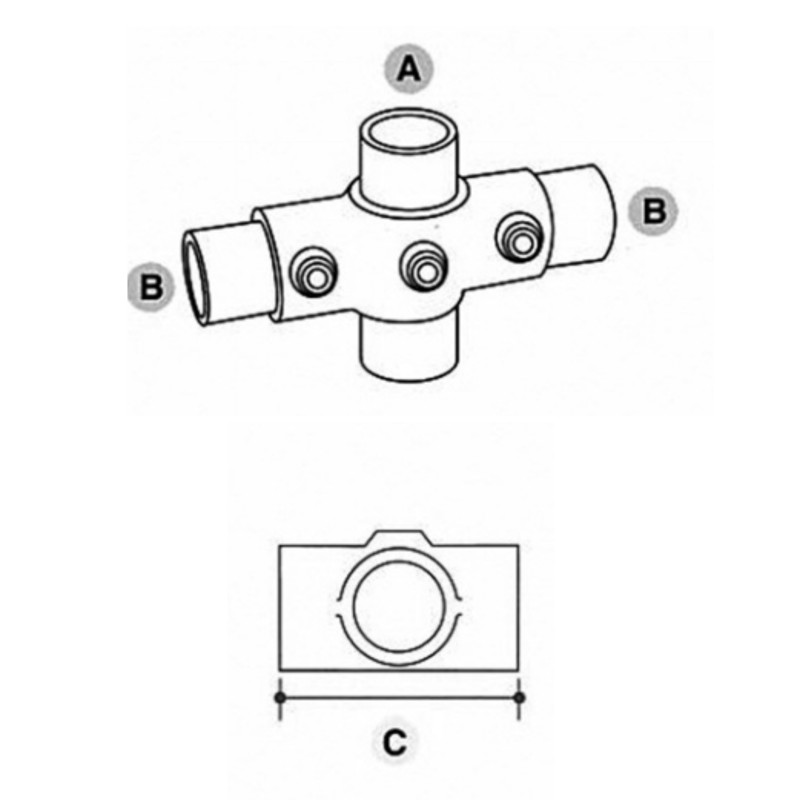

119B Sizes and Attributes
Code | A | B | C | D | E | F | G | Inner Dia mm | Outer Dia mm | Weight Kg |
| 119B | 1″ | 1″ | 96 | 25 | 33.9 | 0.37 | ||||
| 119C | 1 1/4″ | 1 1/4″ | 120 | 30 | 42.4 | 0.62 | ||||
| 119D | 1 1/2″ | 1 1/2″ | 135 | 40 | 48.3 | 0.71 | ||||
| 119E | 2″ | 2″ | 168 | 50 | 60.3 | 1.15 |
