Key Clamp 158 4 Way Vertical Tube Cross
Keyclamp 158 4 Way Cross With Centre Tube
Description

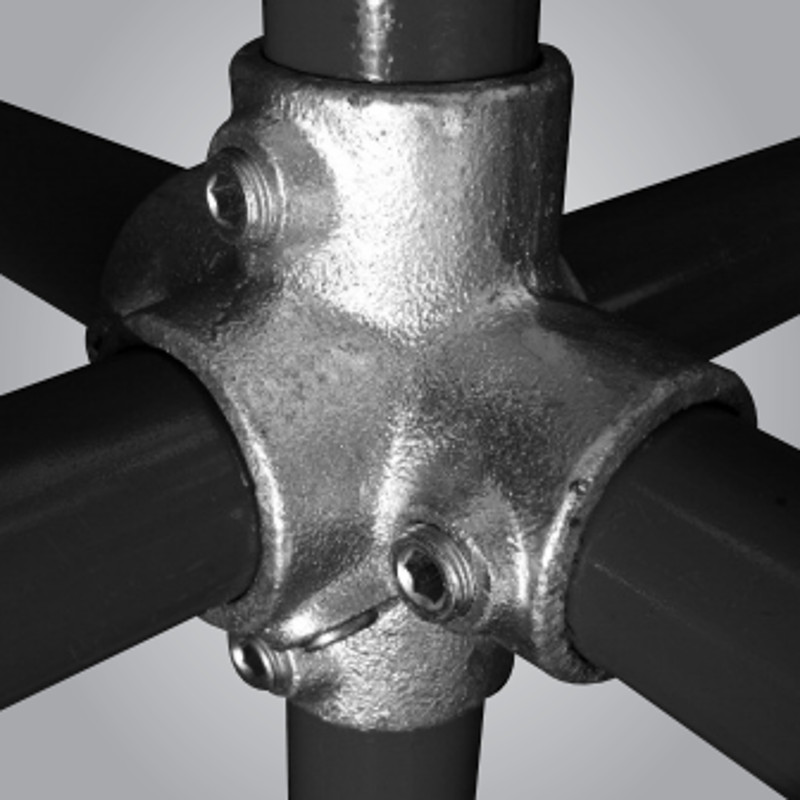

This Key Clamp creates a 4 way cross which enables the vertical rail to pass through with 4 horizontal tubes joining at 90 degrees.
Ideal for structures with multiple verticals.
Uses Include
158 Sizes and Attributes

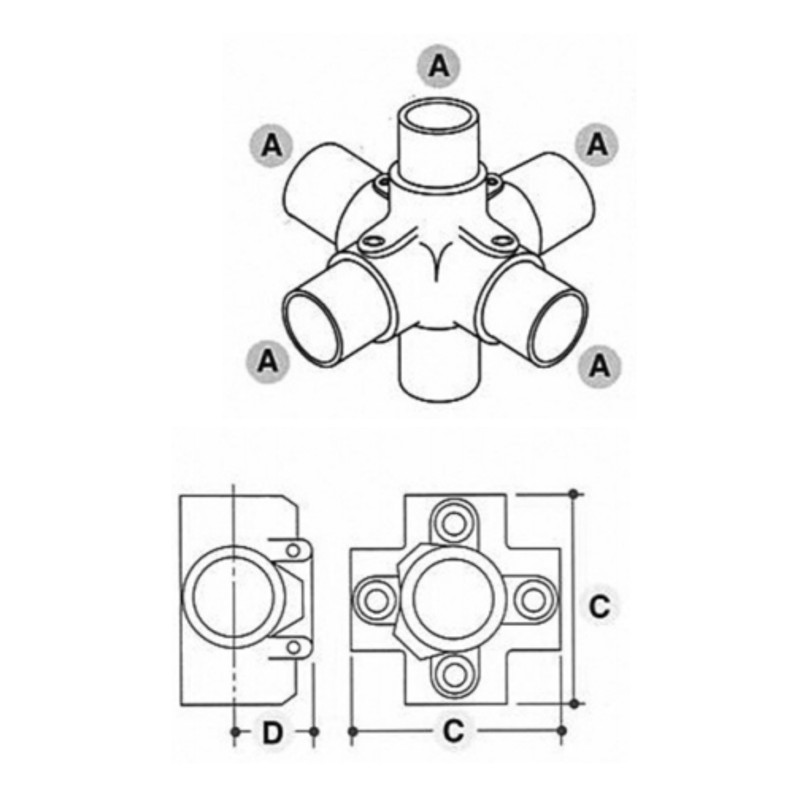

Code | A | B | C | D | E | F | G | Inner Dia mm | Outer Dia mm | Weight Kg |
| 158B | 1″ | 46 | 25 | 33.9 | 0.59 | |||||
| 158C | 1 1/4″ | 60 | 30 | 42.4 | 0.98 | |||||
| 158D | 1 1/2″ | 68 | 40 | 48.3 | 1.17 |
